Glass Fusion Kilns

For medium production lines or for larger than medium production lines, suitable for professional work.
For industrial or higher capacity applications, please visit vesta-kilns.com

TYPES & MODEL
SELECTION
TECHICAL
FEATURES
ACCESSORIES
SPARE PARTS
PRICE LIST
PAYMENT TERMS

Glass Studio Group, Glass Fusion, PRO Series

Order Code	Internal Dimensions ~(W x D x H)	Outer Dimensions ~(W x D x H)	Electrical Connection [~]	Power For 850 ºC ~kW
GFK/PRO 80/0960/14	80 x 120 x 35 cm	110 x 150 x 140 cm	16 A / 380 V	9.0 kW
GFK/PRO 80/1280/14	80 x 160 x 35 cm	110 x 190 x 140 cm	20 A / 380 V	11.6 kW
GFK/PRO 100/1750/14	100 x 175 x 35 cm	125 x 205 x 140 cm	27 A / 380 V	16.2 kW
GFK/PRO 100/2000/14	100 x 200 x 35 cm	125 x 230 x 140 cm	30 A / 380 V	18.1 kW
GFK/PRO 120/2400/14	120 x 200 x 35 cm	145 x 230 x 140 cm	34 A / 380 V	20.7 kW
GFK/PRO 120/2880/14	120 x 240 x 35 cm	145 x 270 x 140 cm	41 A / 380 V	24.3 kW
GFK/PRO Cust	according to the customer requirements.

...

Gass Stuido Group, Technical Specification of PRO Series Electrical Glass Fusion Kilns

Area of Use / Application Area	Glass fusion
Max. Temperature	850 ºC
Temperature Sensor Type	K Type (NiCr-Ni)
Temperature Control* and Programming Device	Bentrup (standard) Click on the link for optional control device.
Temperature Control	Single zone control (standard)
Power Control	Contactor (standard) SSR - Solid state Relay (optional)
Heating Surfaces	Celing

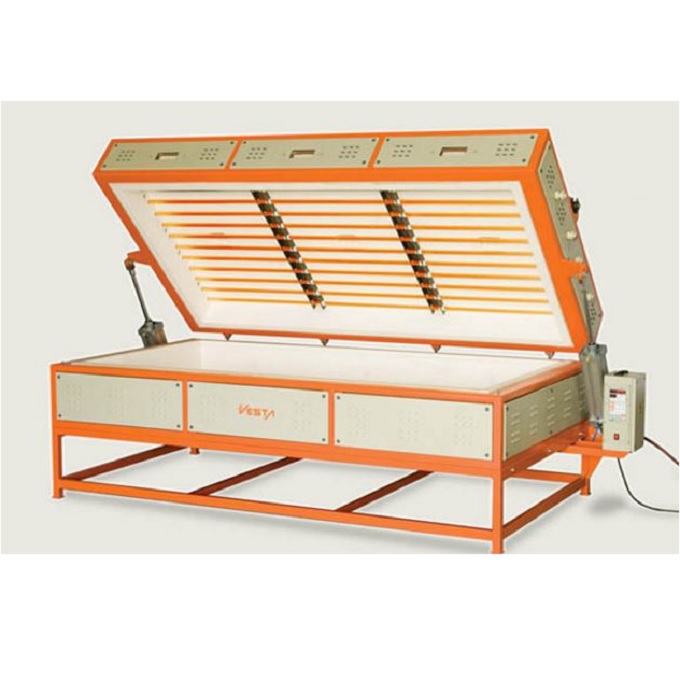

Heating Elements	With resistance wires, which are placed in quartz tubes for homogeneous radiation effect.
Heat Insulation	High density ceramic fiber
Cooling	Natural cooling / Free cooling
Door / Cover	Manual with the help of gased pressurized damper
Main Body	Folded steel plate
Color**	Beige (RAL-7035) + Red (RAL-3001) For different colors, please contact with company.
Electrical Connection	Single Phase + Neutral + Ground (up to 5,5 kW) Three Phase + Neutral + Ground (above 5,5 kW)
Electrical Cable	All models are delivered with CE norm plug and cable.

For the selection of different temperature control equipment, please visit the "temperature controllers" tab.
Any changes in the control device of the kiln is reflected to the price.

Different colors can be selected from the colors of our company's stocks. In this case, the change in the color does not affect the price of the kiln. In the case of choosing the colors which are not in the stock of company, the color that is requested by the customer should be provided by customer itself.
...

Gass Stuido Group, Price List of PRO Series Electrical Glass Fusion Kilns

Sipariş Kodu	Internal Dimensions ~(W x D x H)	Temp. Control and Programing Device Use in Kiln	Price For 850 ºC [EURO]
GFK/PRO 80/0960/14	80 x 120 x 35 cm	Bentrup TC 405/30	4.890,-
GFK/PRO 80/1280/14	80 x 160 x 35 cm	Bentrup TC 405/30	6.225,-
GFK/PRO 100/1750/14	100 x 175 x 35 cm	Bentrup TC 405/30	7.560,-
GFK/PRO 100/2000/14	100 x 200 x 35 cm	Bentrup TC 507	8.400,-
GFK/PRO 120/2400/14	120 x 200 x 35 cm	Bentrup TC 507	9.780,-
GFK/PRO 120/2880/14	120 x 240 x 35 cm	Bentrup TC 507	11.315,-

Terms of Payment

All prices are ex-factory.
VAT is not included in the prices.

Optional choices are not included in the prices

Other payments such as transportation and customs are not included in the prices.

Half of the total order price is received in advance before the production of the kiln.

Delivery Condition

Our products are delivered from our workplace address.

Warranty

The warranty period is 2 (two) years.

Faults caused by user or transportation are not covered by the warranty.

...
