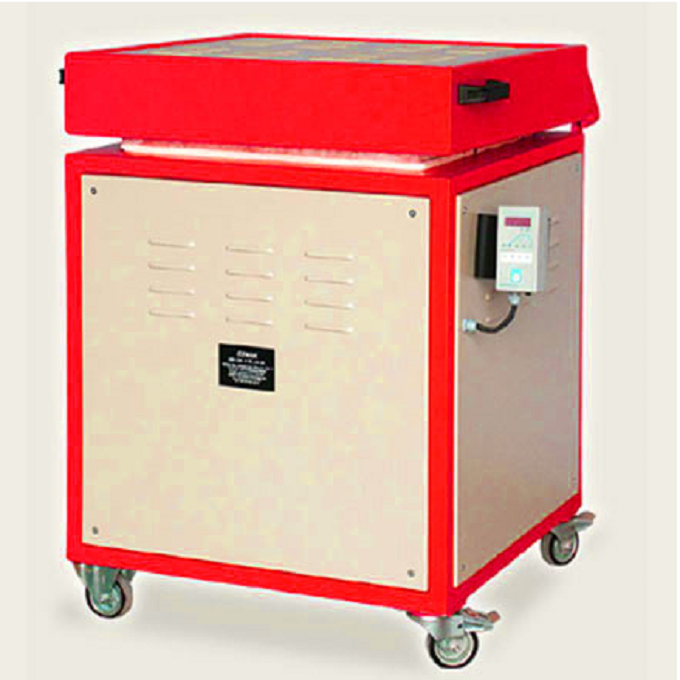

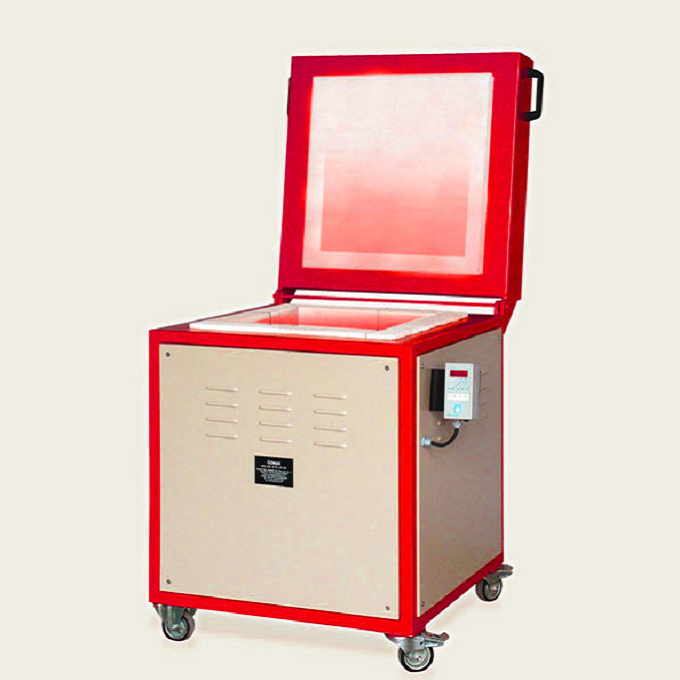

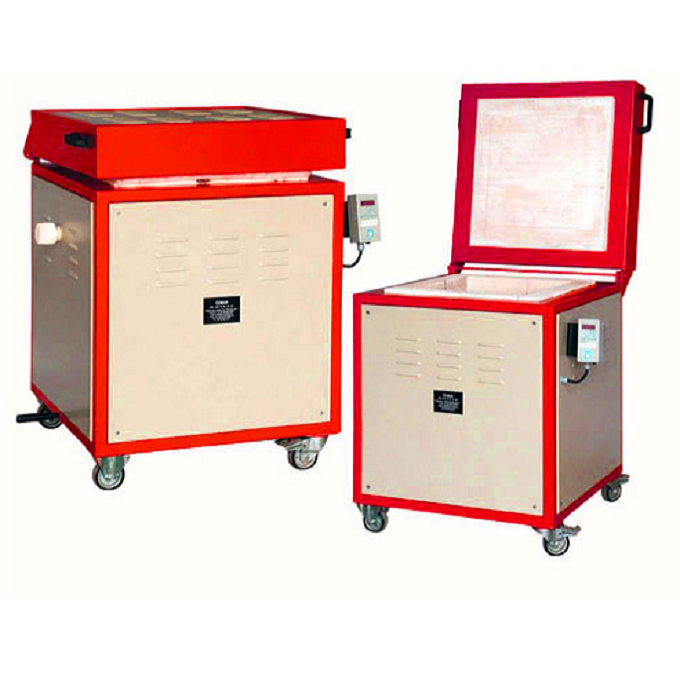

Glass Hobby Group, Top Loading Electric Pate De Verre Kilns,
Order Code
| Volume
~V
| Internal Dimensions
~(W x D x H)
| Outer Dimensions
~(W x D x H)
| Power
For 1000 ºC
~kW
|
| ECFL 50 | 50 lt
| 37 x 37 x 37 cm
| 73 x 73 x 73 cm
| 3.5 kW
|
ECFL 64
| 64 lt
| 40 x 40 x 40 cm
| 76 x 76 x 83 cm
| 4.0 kW
|
| ECFL 80 | 80 lt
| 40 x 40 x 50 cm
| 76 x 76 x 93 cm
| 5.0 kW |
ECFL 100
| 100 lt
| 45 x 45 x50 cm
| 81 x 81 x 93 cm
| 6.0 kW
|
ECFL Cust
| according to the customer requirements |
...
Glass Hobby Group, Technical Specification of Top Loading Electric Pate De Verre Kilns, Area of use /
Application area
| Shaping with mold,
in glass painting and glass decoring |
Max. temperature
| 1000 ºC
|
| Temperature sensor type | K Tipi (NiCr-Ni)
|
Temperature Control* and
Programming Device | Febris TPD 3539 (4 programs, 8 steps)
Click on the link for optional control device |
| Temperature Control | Single zone control (standard)
Multi-zone controlled (optional) |
| Power Control | Contactor (standard)
SSR - Solid State Relay (optional) |
Heating surfaces
| Two side walls + base
|
Heating elements
| Spiral shaped heater elements, Kanthal A1 quality.
|
Heat insulation
| Heating surfaces with light refractory bricks,
Other surfaces are made of ceramic fiber Z Block
|
Cooling
| Natural cooling with manual controlled chimney |
| Door | Manual / with manpower |
Main body
| Welded steel construction |
| Color** | Industrial rapid paint,
Beige (RAL-7035) + Red (RAL-3001)
For different colors, please contact with company. |
Electrical connection
| Single Phase + Neutral + Ground (up to 5.5 kW)
Three Phase + Neutral + Ground (above 5.5 kW)
|
| Electrical cable | All models are delivered with CE norm plug and cable. |
| Security | Optionally, when the kiln door is open, a power switch switches off the energy of the heating elements. |
| Portability | All top-loading electric furnaces of this series are manufactured with wheel as standard. |
All top-loading electric kilns up to 5.5 kW can be used with household electricity.
*For the selection of different temperature control equipment, please vised the "temperature controllers" tab. Any changes in the control device of the furnace is reflected to the price.
**Different colors can be selected from the colors of our company's stocks. In this case, the change in the color does not affect the price of the kiln. In the case of choosing the colors which are not in the stock of company, the color that is requested by the customer should be provided by customer itself....
Kiln Operating Materials
Cordierite plates are used as auxiliary equipment in the kilns.
If requested, the prices of cordierite plates will be added to offer separately.
Standard Cordierite Plates and Supports
Cordierite Plate I: 370 mm x 370 mm x 15 mm
Cordierite Plate II: 400 mm x 400 mm x 15 mm
Cordierite Plate III: 400 mm x 500 mm x 15 mm
Support: 110 mm x 65 mm x 55 mm
Maintenance and Repair SuppliesThe following maintenance and repair materials are available upon request.
Ceramic fiber adhesive,
Brick adhesive,
Resistance wire (Kanthal A1)
Glass Hobby Group, Price List of Top Loading Electric Pate De Verre Kilns.
Order Code
| Volume
~V
| Power
For 1000 ºC
kW
| Price
For 1000 ºC
[EURO]
|
| ECFL 50 | 50 lt
| 3.5 kW
| 1.400,-
|
ECFL 64
| 64 lt
| 4.0 kW | 1.500,-
|
| ECFL 80 | 80 lt
| 5.0 kW | 1.600,- |
ECFL 100
| 100 lt
| 6.0 kW
| 1.770,- |
| ECFL Cust | according to the customer requirements
|
Terms of Payment
All prices are ex-factory.
VAT is not included in the prices.
Optional choices are not included in the prices
Other payments such as transportation and customs are not included in the prices.
Half of the total order price is received in advance before the production of the kiln.
Delivery Condition
Our products are delivered from our workplace address.
Warranty
The warranty period is 2 (two) years.
Faults caused by user or transportation are not covered by the warranty.
...
