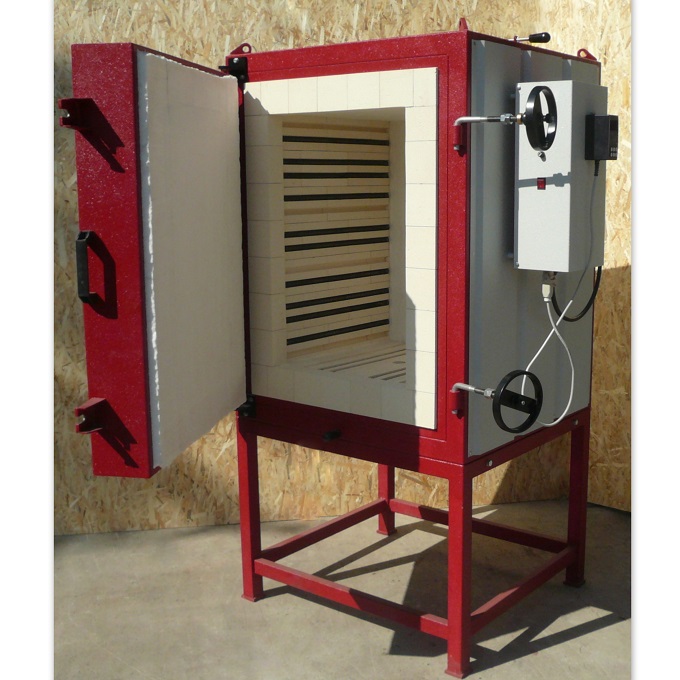

Small scale front loading electric glass kilns are preferred for hobby works.

The front loading electrical Pate de Verre kilns have the same characteristics as the standard series front loading electrical ceramic kilns, but operate at a lower temperature and provide faster cooling.

It is suitable for both shaping glass with mold and and glass decor works.

The product is more ergonomic compared to the top loading electric glass kilns in terms of placement and unloading.

• TYPES & MODEL
  SELECTION
• TECHICAL
  FEATURES
• ACCESSORIES
  SPARE PARTS
• PRICE LIST
  PAYMENT TERMS

Glass Hobby Group, Front Loading Electric Pate De Verre Kilns,

Order Code	Volume ~V	Internal Dimension ~(W x D x H)	Outer Dimension ~(W x D x H)	Power For 1000 ºC kW
ECFL 50	50 lt	37 x 37 x 37 cm	98 x 87 x 160 cm	4.0 kW
ECFL 64	64 lt	40 x 40 x 40 cm	101 x 90 x 160 cm	4.0 kW
ECFL 80	80 lt	40 x 40 x 50 cm	101 x 90 x 170 cm	5.0 kW
ECFL 100	100 lt	45 x 45 x 50 cm	106 x 95 x 170 cm	6.0 kW
ECFL Cust	according to the customer requirements.

...

Ceramic Hobby Group, Technical Specifications of  Standard Series  Front Loading Electric Kilns

Area of use / Application area	Firing biscuits, glaze and decor in ceramic, pottery and tile production
Max. temperature	1000 ºC
Temperature sensor type	K Tipi (NiCr-Ni)

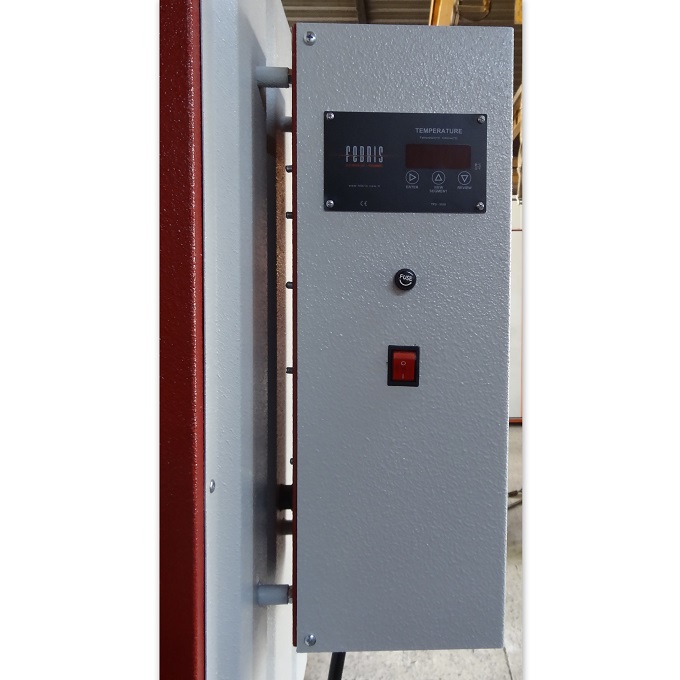

Temperature Control and Programming Device	Febris TPD 3539 (4 programs, 8 steps) Click on the link for optional control device
Temperature Control	Single zone control (standard) Multi-zone controlled (optional)
Power Control	Contactor (standard) SSR - Solid State Relay (optional)
Heating surfaces	Two side walls + base
Heating elements	Spiral shaped heater elements, Kanthal A1 quality.
Heat insulation	Heating surfaces with light refractory bricks, Other surfaces are made of ceramic fiber Z Block

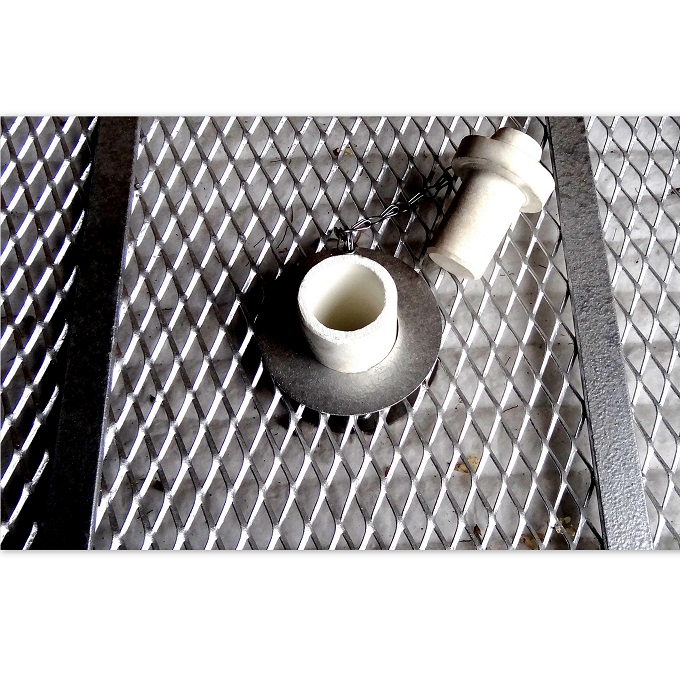

Cooling	Natural cooling with manual controlled chimney
Door	Manual / with manpower
Main body	Welded steel construction
Color	Industrial rapid paint, Beige (RAL-7035) + Red (RAL-3001) For different colors, please contact with company.
Electrical connection	Single Phase + Neutral + Ground (up to 4.5 kW) Three Phase + Neutral + Ground (above 4.5 kW)
Electrical Cable	All models are delivered with CE norm plug and cable.
Security	Optionally, when the kiln door is open, a power switch switches off the energy of the heating elements.
Portability	All top-loading electric furnaces of this series are manufactured with wheel as standard.

For the selection of different temperature control equipment, please vised the "temperature controllers" tab.
Any changes in the control device of the furnace is reflected to the price.

Different colors can be selected from the colors of our company's stocks. In this case, the change in the color does not affect the price of the kiln. In the case of choosing the colors which are not in the stock of company, the color that is requested by the customer should be provided by customer itself.

Kiln Operating Materials

Cordierite plates are used as auxiliary equipment in the kilns.

if requested together with the kiln,  the prices of cordierite plates will be added to offer separately.

Standard Cordierite Plates and Supports

Cordierite Plate I: 370 mm x 370 mm x 15 mm

Cordierite Plate II: 400 mm x 400 mm x 15 mm
Cordierite Plate III: 400 mm x 500 mm x 15 mm

Support: 110 mm x 65 mm x 55 mm

Maintenance and Repair Supplies

The following maintenance and repair materials are available upon request.

Ceramic fiber adhesive,

Brick adhesive,

Resistance wire (Kanthal A1)

Glass Hobby Group, Price List of Front Loading Electric Kilns

Order Code	Volume ~V	Power For 1000 ºC kW	Fiyat For 1000 ºC [EURO]
ECFL 50	50 lt	4.0 kW	1.450,-
ECFL 64	64 lt	4.0 kW	1.550,-
ECFL 80	80 lt	5.0 kW	1.650,-
ECFL 100	100 lt	6.0 kW	1.850,-
ECFL Cust	according to the customer requirements.

Terms of Payment

All prices are ex-factory.

VAT is not included in the prices.

Optional choices are not included in the prices

Other payments such as transportation and customs are not included in the prices.

Half of the total order price is received in advance before the production of the kiln.

Delivery Condition

Our products are delivered from our workplace address.

Warranty

The warranty period is 2 (two) years.

Faults caused by user or transportation are not covered by the warranty.
