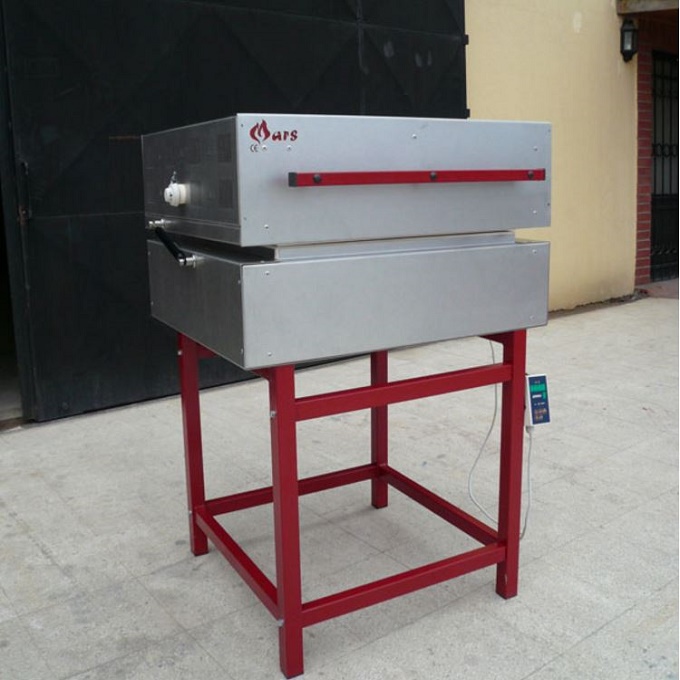

Glass Fusion Kilns | ECO Series


Fusion is the process of combining two or more pieces of glass with heat until they become fluid. During the fusion, the glass pieces are heated until they stick to each other, so that each piece of glass has its own shape and is also join to the other parts.

While fusing, cooling is as important as heating, rapid cooling can lead to cracks in the glass. Therefore, fusion kilns must be capable of applying the desired heat diagrams during both heating and cooling.

Glass fusion kilns of hobby group can be manufactured from stainless material upon request.
Glass Hobby Group, Glass Fusion, Electrical Kilns, ECO Series
Order Code
 Internal Dimensions
~(W x D x H)
  Outer Dimensions
~(W x D x H)
Power
for 850ºC
GFK/ECO 50/0250/1450 x 50 x 25 cm
65 x 80 x 115 cm 3.0 kW
GFK/ECO 50/0375/14
50 x 75 x 25 cm
65 x 110 x 115 cm4.5 kW
GFK/ECO 50/0500/14
  50 x 100 x 25 cm
 65 x 130 x 115 cm 5.6 kW
GFK/ECO 60/0360/14
 60 x 60 x 25 cm75 x 90 x 115 cm3.8 kW
GFK/ECO 60/0540/14
 60 x 90 x 25 cm75 x 120 x 115 cm5.2 kW
GFK/ECO 60/0720/14
 60 x 120 x 25 cm 75 x 150 x 115 cm 6.5 kW
GFK/ECO Custaccording to the customer requirements.
...
Glass Hobby Group, Technical Specification of ECO Series Electrical Glass Fusion Kilns
Area of Use /
Application Area
Glass fusion
Max. Temperature
850 ºC
Temperature Sensor TypeK Type (NiCr-Ni)
Temperature Control* and

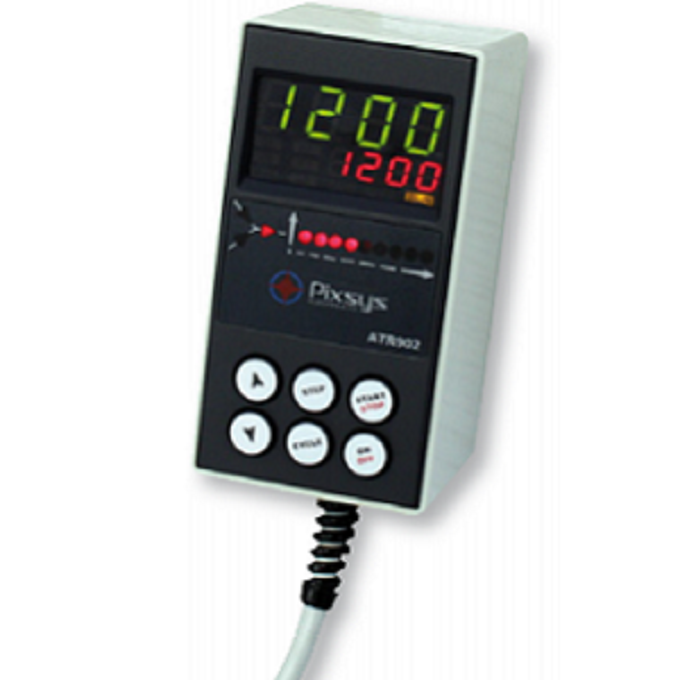

Programming Device		Pixsys ATR 902 (15 programs, 8 steps)
Click on the link for optional control device.
Temperature ControlSingle zone control (standard)
Power ControlContactor (standard)
SSR - Solid state Relay (optional)
Heating SurfacesCeling
Heating ElementsWith resistance wires Which are placed in quartz tubes for homogeneous radiation effect
Heat InsulationHigh density ceramic fiber
CoolingNatural cooling / Free cooling
Door / Cover

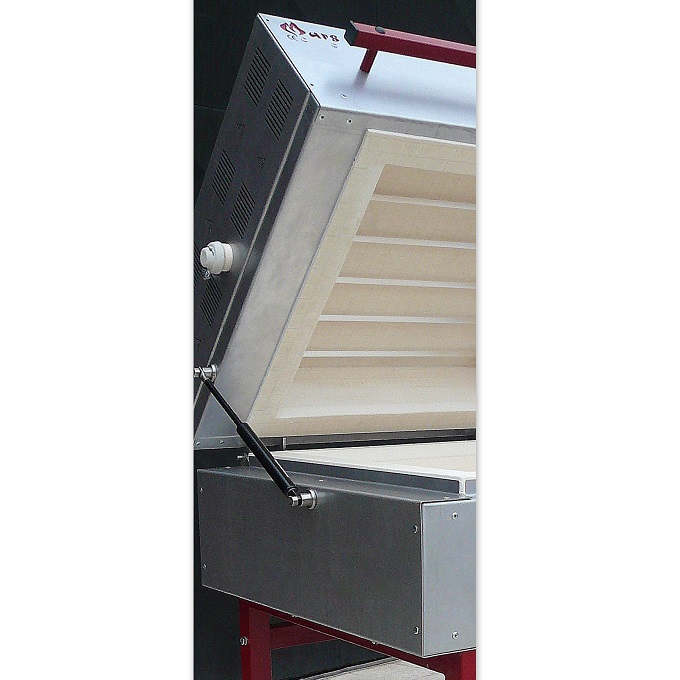

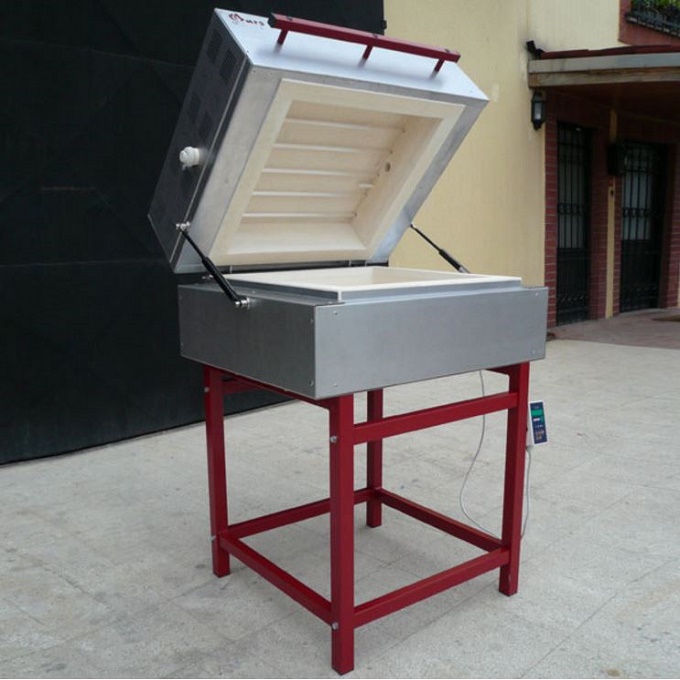

Manual with the help of gased pressurized damper
Main Body
Folded steel plate
Color**Beige (RAL-7035) + Red (RAL-3001)
For different colors, please contact with company.
Electrical ConnectionSingle Phase + Neutral + Ground (up to 4,5 kW)
Three Phase + Neutral + Ground (above 4,5 kW)
Electrical CableAll models are delivered with CE norm plug and cable.
For the selection of different temperature control equipment, please visit the "temperature controllers" tab.
Any changes in the control device of the kiln is reflected to the price.

Different colors can be selected from the colors of our company's stocks. In this case, the change in the color does not affect the price of the kiln. In the case of choosing the colors which are not in the stock of company, the color that is requested by the customer should be provided by customer itself.
...

Glass Hobby Group, Price List of ECO Series Electrical Glass Fusion Kilns
Order Code
Internal Dimensions

~(W x D x H)
Power
for 850ºC
kW
Price
for 850ºC
[Euro]
GFK/ECO 50/0250/1450 x 50 x 25 cm
3.0 kW1.245,-
GFK/ECO 50/0375/14
50 x 75 x 25 cm
4.5 kW
1.725,-
GFK/ECO 50/0500/14
  50 x 100 x 25 cm
5.6 kW2.190,-
GFK/ECO 60/0360/14
 60 x 60 x 25 cm3.8 kW1.670,-
GFK/ECO 60/0540/14
 60 x 90 x 25 cm5.2 kW2.335,-
GFK/ECO 60/0720/14
 60 x 120 x 25 cm6.5 kW2.860,-
GFK/ECO Custaccording to the requirements.
Terms of Payment
All prices are ex-factory.
VAT is not included in the prices.
Optional choices are not included in the prices
Other payments such as transportation and customs are not included in the prices.
Half of the total order price is received in advance before the production of the kiln.

Delivery Condition
Our products are delivered from our workplace address.

Warranty
The warranty period is 2 (two) years.
Faults caused by user or transportation are not covered by the warranty.
