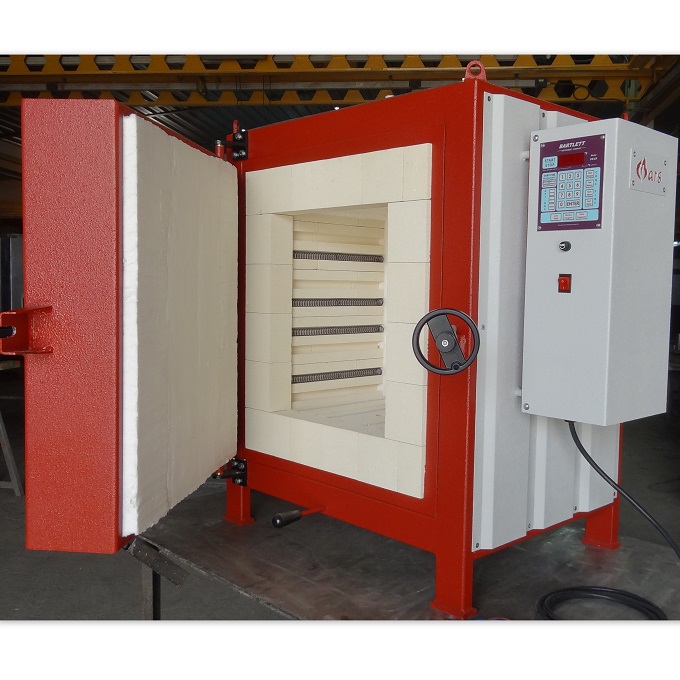

Ceramic Studio Group, Small Series Bench Mounting Electric Kilns
Order Code
| Volume
~V
| Internal Dimensions
~(W x D x H)
| Outer Dimensions
~(W x D x H)
| Temperature
ºC
| Power
~kW
|
| ECFL 15 | 15 lt
| 21 x 25 x 30 cm
| 84 x 70 x 83 cm
| 1300 ºC | 2.4 kW
|
ECFL 25
| 25 lt
| 25 x 30 x 34 cm | 88 x 75 x 87 cm | 1300 ºC | 2.4 kW |
ECFL 35
| 35 lt
| 30 x 35 x 34 cm | 93 x 80 x 87 cm | 1300 ºC | 3.0 kW |
| ECFL 45 | 45 lt | 32 x 36 x 39 cm | 95 x 81 x 107 cm | 1300 ºC | 3.0 kW |
| ECFL Cust | İsteğe özel ölçülendirme. |
...
Ceramic Studio Group, Technical Specifications of Small Series / Bench Mounting Electric Kilns
Area of use /
Application area
| For experimantal studies, or sample production
Firing biscuits, glaze and decor in porcelain, ceramic, pottery and tile production.
|
Max. temperature
| 1300 ºC
|
| Temperature sensor type | S Tipi (PtRh-Pt)
|
Temperature Control* and
Programming Device | Febris TPD 8623(6 programs, 8 steps)
Click on the link for optional control device
|
| Temperature Control | Single zone control (standard)
|
| Power Control | Contactor (standard)
SSR - Solid State Relay (optional) |
Heating surfaces
| Two side walls + base |

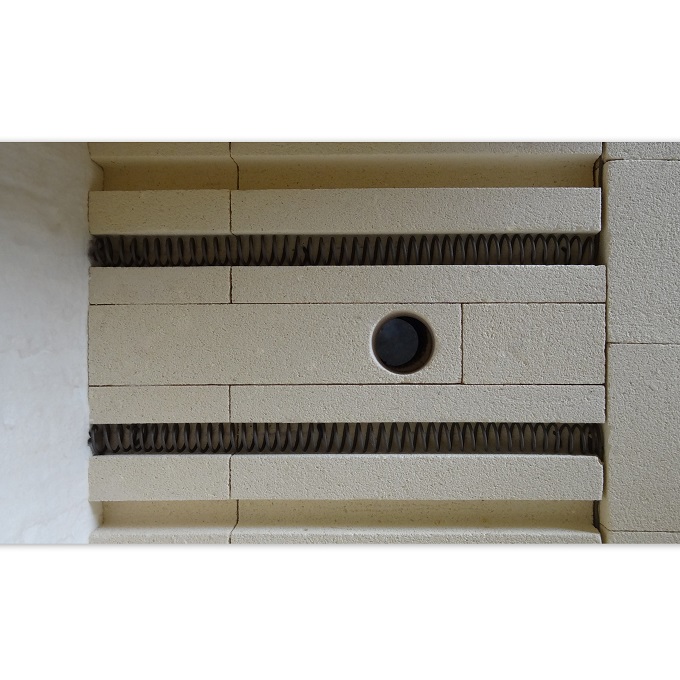

Heating elements
| Spiral shaped heater elements, Kanthal A1 quality.
|
Heat insulation
| Heating surfaces are made of light refractory bricks,
Other surfaces are made of ceramic fiber Z Block
|
Cooling

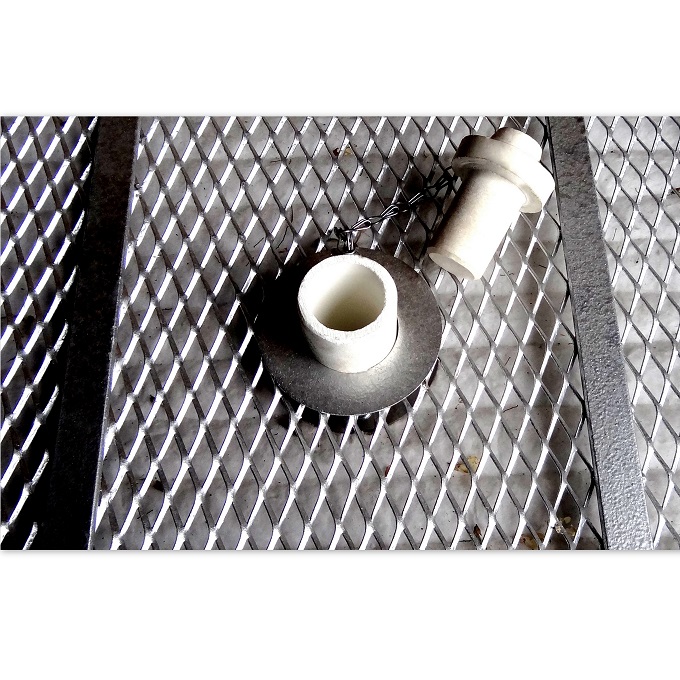

| Natural cooling with manual controlled chimney |

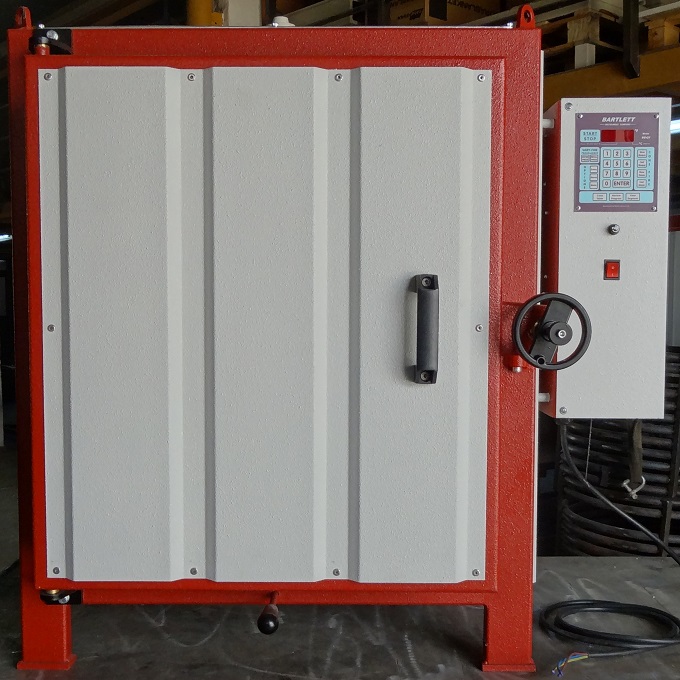

| Door | Manual / with manpower
|
Main body
| Welded steel construction
|
| Color | Industrial rapid paint,
Beige (RAL-7035) + Red (RAL-3001)
For different colors, please contact with company.
|
Electrical connection
| Single Phase + Neutral + Ground.
|
Electrical cable
| All models are delivered with CE norm plug and cable. |
| Security | Optionally, when the kiln door is open, a power switch switches off the energy of the heating elements. |
For the selection of different temperature control equipment, please vised the "temperature controllers" tab.
Any changes in the control device of the furnace is reflected to the price.
Different colors can be selected from the colors of our company's stocks. In this case, the change in the color does not affect the price of the kiln. In the case of choosing the colors which are not in the stock of the company, the color that is requested by the customer should be provided by customer itself.
Kiln Operating Materials
Cordierite plates are used as auxiliary equipment in the kilns.
If requested, the prices of cordierite plates will be added to offer separately.
Standard Cordierite Plates and Supports
Cordierite Plate I: 370 mm x 370 mm x 15 mm
Cordierite Plate II: 400 mm x 400 mm x 15 mm
Cordierite Plate III: 400 mm x 500 mm x 15 mm
Support: 110 mm x 65 mm x 55 mm
Maintenance and Repair SuppliesThe following maintenance and repair materials are available upon request.
Ceramic fiber adhesive,
Brick adhesive,
Resistance wire (Kanthal A1)
Ceramic Studio Group, Price List of Small Series Bench Mounting Electric KilnsOrder Code
| Volume
~V
| Price
For 1300 ºC
[EURO]
|
ECFL 15
| 15 lt
| 1.580,- |
ECFL 25
| 25 lt
| 1.670,- |
ECFL 35
| 35 lt
| 1.810,- |
ECFL 45
| 45 lt
| 1.850,-
|
ECFL Cust
| according to the customer requirements.
|
Terms of PaymentAll prices are ex-factory.
VAT is not included in the prices.
Optional choices are not included in the prices
Other payments such as transportation and customs are not included in the prices.
Half of the total order price is received in advance before the production of the kiln.
Delivery Condition Our products are delivered from our workplace address.
WarrantyThe warranty period is 2 (two) years.
Faults caused by user or transportation are not covered by the warranty.
...
