CERAMICS STUDIO KILNS

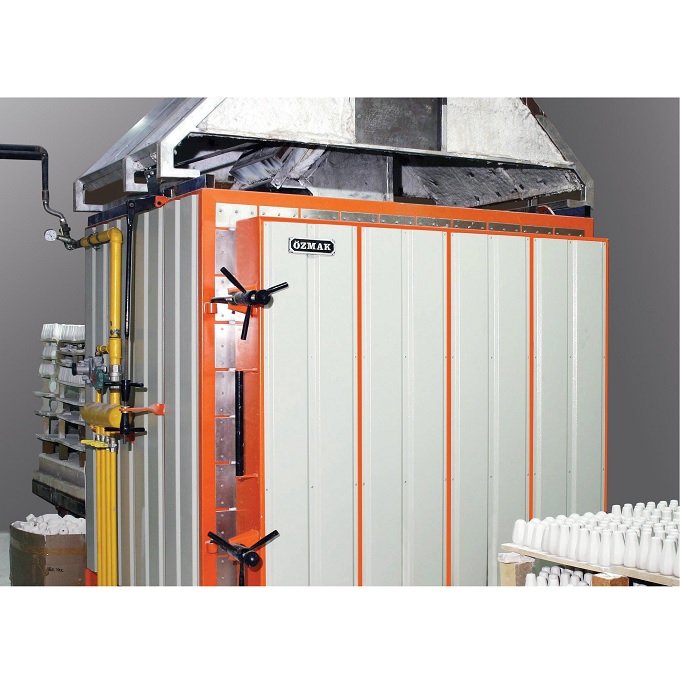

Front Loading Gas Kilns

Gas-fired kilns are accepted in a long-lasting and durable kilns group, and they are used to fire hard ceramic and porcelain structures under oxidative and reductive atmospheres.

The front loading gas kilns are ideal for reducing the high energy costs in places where intensive production is performed.

The front loading gas kilns can work with any of three different types of fuel, LPG, propane and natural gas. Fuel type should be determined at the demand stage before production of kiln.

Front loading gas furnaces with a capacity of 1000 liters and above have a car at the bottom (bottom car type ) and are clasified as chamber type kilns. Depending on the production density, the cars of gas-fired kilns are also organized as in the shuttle form. In capacities below 1000 lt, the use of cars is depend on request. For industrial applications, please visit our Vesta brand.

For detailed information please refer to the "Technical Specifications" tab.
Ceramic Studio Group, Front Loading Gas Kilns
Order Code
Volume
~V
Internal Dimension
~(W x D x H)
Number of CarNumber of Burner
Temperature
ºC
Power
~kW
CGK/SCH 0300300 lt
50 x 75 x 80 cm
-
1
1300 ºC1.1 kW / 380 V
CGK/SCH 0500
500 lt
80 x 80 x 80 cm
-21300 ºC1.5 kW / 380 V
CGK/SCH 0700700 lt
96 x 85 x 86 cm
-2
1300 ºC1.5 kW / 380 V
CGK/SCH 10001000 lt100 x 120 x 85 cm1
41300 ºC2.2 kW / 380 V
CGK/SCH 15001500 lt100 x 120 x 125 cm141300 ºC2.2 kW / 380 V
CGK/SCH Cust according to the customer requirements.
...
Ceramic Studio Group, Technical Specification of Front Loading Gas Kilns.
Area of use /
Application area
Firing biscuits, glaze and decor
in  porcelain, ceramic, pottery and tile production.
Max. temperature
1300 ºC
Temperature sensor typeS Tipi (PtRh-Pt)
Temperature Control and
Programming Device		Febris TPD 8623(6 programs, 8 steps)
Click on the link for optional control device
Temperature ControlSingle-zone controlled (standard)
Kiln AtmosphereOxidative - Neutral (standard)
Reductive (optional)

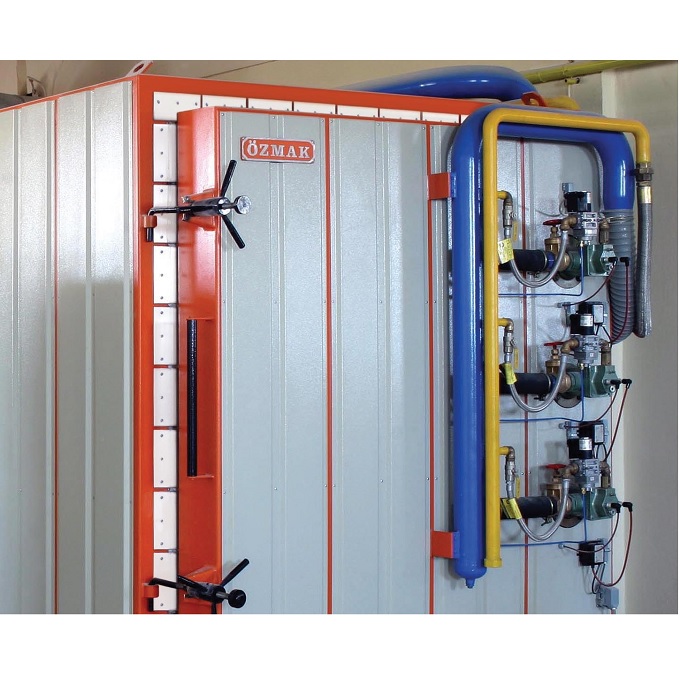

Burner type
Jet type gas burners with silisyum carbide nuzzle, they have low emission values,
All burners have automatic firing and continuous flame monitoring systems.
Kiln Inside Pressure
Without control (standard)
With inside pressure control (optional)
Heat insulation
with light refractory bricks (at the bottom of the kilns)
Ceramic fiber Z Block (all other surface)
Cooling
Automatic cooling
CarManuel / with man power (standard)
With motor (optional)
DoorManual / with man power
Main body
Welded steel construction
ColorBeige (RAL-7035) + Orange (RAL-2010)
Electrical connectionThree Phase + Neutral + Ground
Cable
 All models are delivered with CE norm plug and cable.
For the selection of different temperature control equipment, please visit the "temperature controllers" tab.
Any changes in the control device of the furnace is reflected to the price.

Different colors can be selected from the colors of our company's stocks. In this case, the change in the color does not affect the price of the kiln. In the case of choosing the colors which are not in the stock of company, the color that is requested by the customer should be provided by customer itself.
...

Kiln Operating Materials
Cordierite plates are used as auxiliary equipment in the kilns.
if requested together with the kiln,  the prices of cordierite plates will be added to offer separately.

Standard Cordierite Plates and Supports
Cordierite Plate I: 370 mm x 370 mm x 15 mm
Cordierite Plate II: 400 mm x 400 mm x 15 mm
Cordierite Plate III: 400 mm x 500 mm x 15 mm
Support: 110 mm x 65 mm x 55 mm

Maintenance and Repair Supplies
The following maintenance and repair materials are available upon request.
Ceramic fiber adhesive,
Brick adhesive,
Resistance wire (Kanthal A1)

Ceramic Studio Group, Price List of Front Loading Gas Kilns.
Order Code
 Volume

~V
Price
For 1300ºC
[EURO]
CGK/SCH 0300300 lt4.785,-
CGK/SCH 0500500 lt6.310,-
CGK/SCH 0700700 lt8.740,-
CGK/SCH 10001000 lt10.950,-
CGK/SCH 15001500 lt13.895,-
CGK/SCH Custaccording to the customer requirements.
Terms of Payment
All prices are ex-factory.
VAT is not included in the prices.
Optional choices are not included in the prices
Other payments such as transportation and customs are not included in the prices.
Half of the total order price is received in advance before the production of the kiln.

Delivery Condition
Our products are delivered from our workplace address.

Warranty
The warranty period is 2 (two) years.
Faults caused by user or transportation are not covered by the warranty.
...
